EV-YJ High-Voltage Cables for Road Vehicles
Applications: Used in equipment such as electronic control systems, high-voltage systems, and energy storage systems
Insulation Material: XLPE
Rated Temperature: -40°C to 125°C
Rated Voltage: AC 600V / DC 900V
Conductor: Stranded bare copper
Wire Gauge: 0.35 mm²–6 mm²
Features: High flexibility, abrasion resistance, corrosion resistance, temperature resistance, aging resistance, etc.
New Energy Motor Control Cables
Applications: Internal wiring for electric vehicles; connections between charging ports and batteries; internal battery connections (battery-to-motor/drive unit); connections between batteries and other components; motor connection cables; battery energy storage systems, etc.
Insulation Material: FEP (Fluorinated Ethylene Propylene / Teflon)
Sheath Material: Silicone rubber
Rated Temperature: 70°C–200°C
Rated Voltage: 150V/3000V
Shielding: Shielded or unshielded options available
Conductor: Tinned oxygen-free copper
Core Configuration: Customizable according to customer requirements
Features: High flexibility, abrasion resistance, waterproof, corrosion resistance, temperature resistance, aging resistance, etc.

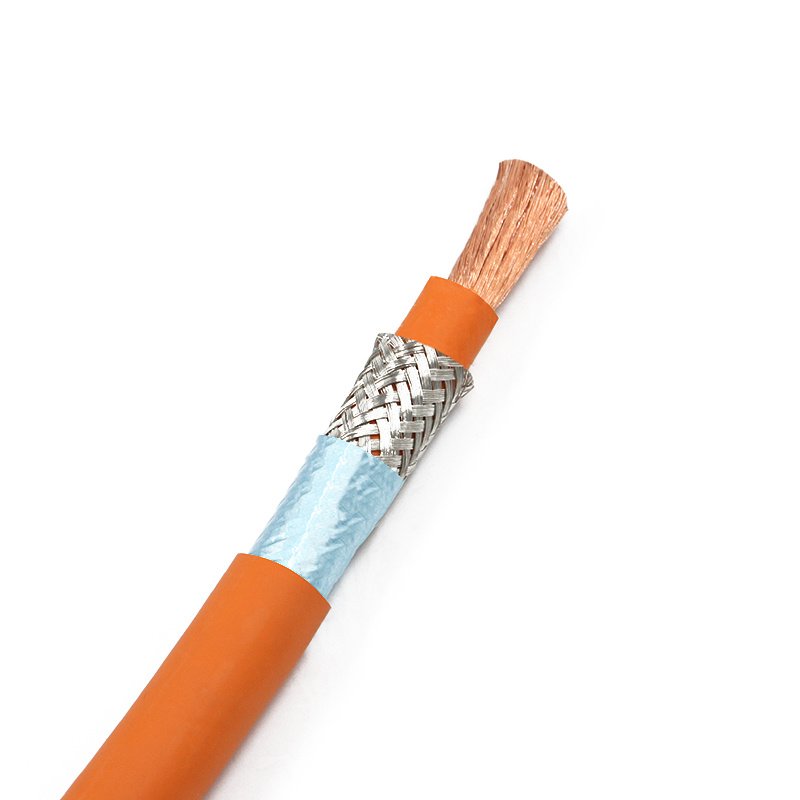

EV New Energy Shielded Control Cables
Insulation Material: XLPE
Conductor: Stranded bare copper
Temperature Rating: -40°C to +125°C
Voltage Rating: AC 1000V / DC 1500V
Shielding Material: Tinned oxygen-free copper braid
Flame Retardancy: GB/T 18380.1-2
Color: Orange
Wire Gauge: 35mm² / 50mm²
Applications: New energy photovoltaics, new energy vehicle wiring, PV inverters, etc.
EV Energy Storage Unshielded Wires
Applications: Electronic control systems, battery systems, high-voltage systems
Insulation Material: XLPE
Sheath Material: Silicone rubber
Rated Temperature: -40°C to +125°C
Rated Voltage: AC 1000V / DC 1500V
Shielding: Shielded or unshielded options available
Conductor: Stranded bare copper
Core Configuration: Customizable according to customer requirements
Features: High flexibility, abrasion resistance, waterproof, corrosion resistance, temperature resistance, aging resistance, etc.
